Automatic Zipper Doypack Packing Machine For Chocolate Bean

Brand Name : ZON PACK

Model Number : ZH-GDS-02

Place of Origin : China

MOQ : every individual machine in the packing system

Price : $5000~35000 per set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50 sets per month

Delivery Time : 50 working days

Packaging Details : wood carton

Voltage : 220V/380V

Automatic grade : Automatic

Condition : New

Packaging type : Bags,Pouch

Packaging material : Plastic,Paper,OPP/CE

Driven type : Electric

Type : Multi-Function Packaging Machine,automatic powder packaging machine,lipton tea bag packing machine, plastic bag packing machine, sugar pouch packing machine

Function : weighing, Filling,Sealing,Wrapping,Labeling,Slitting

Application : Food,Medical,Chemical,Machinery & Hardware

After-sales service provided : Engineers available to service machinery overseas,Online support,Video technical support,Free spare parts

Packing speed : 20-60 Bags/min

Warranty : 1 Year

Usage : small granules

Material : stainless steel,304SS,SS304

Name : Low Cost Automatic Mini Doypack Packing Machine for Premade Pouch

Product name : Coffee Mix Bag Packaging Machine,Welin New Version Mini Doypack Machine,Low Cost Automatic Mini Doypack Packing Machine for Premade Pouch

Filling range : 10-3000g

Contact Now

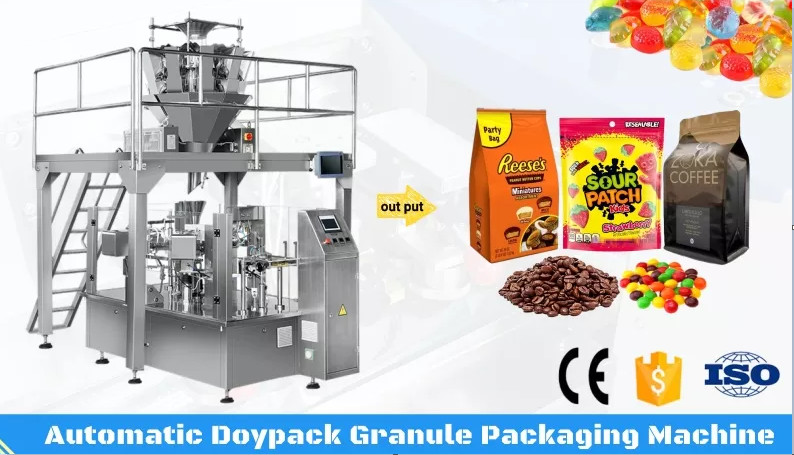

High quality automatic zipper doypack pouch bag roasted coffee chocolate bean packaging packing machine

Speed: 20~60 bags/min Accurancy: 0.5~1.5 g

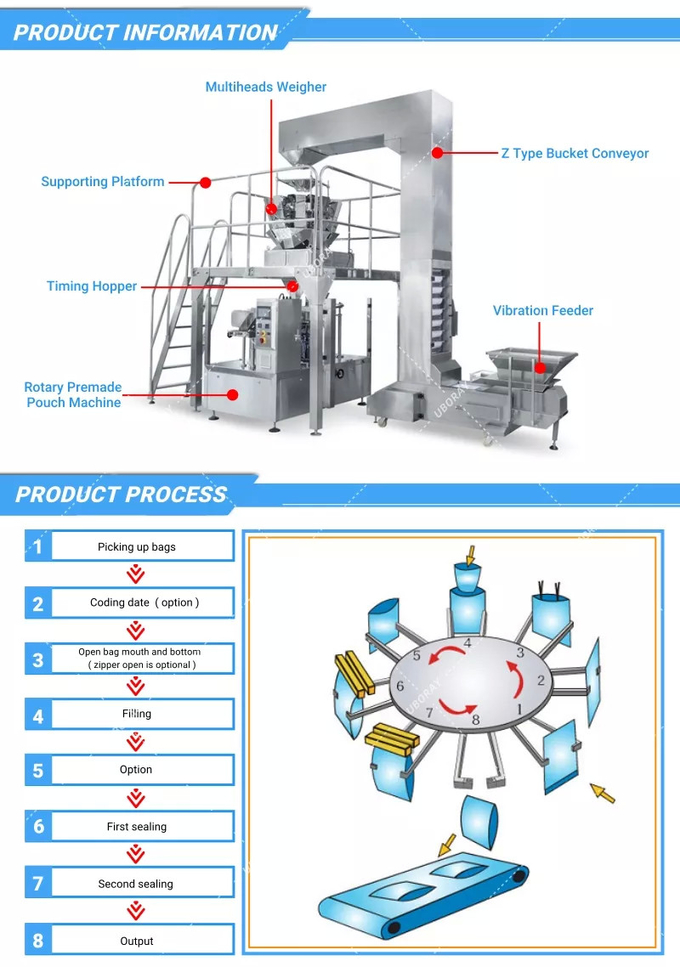

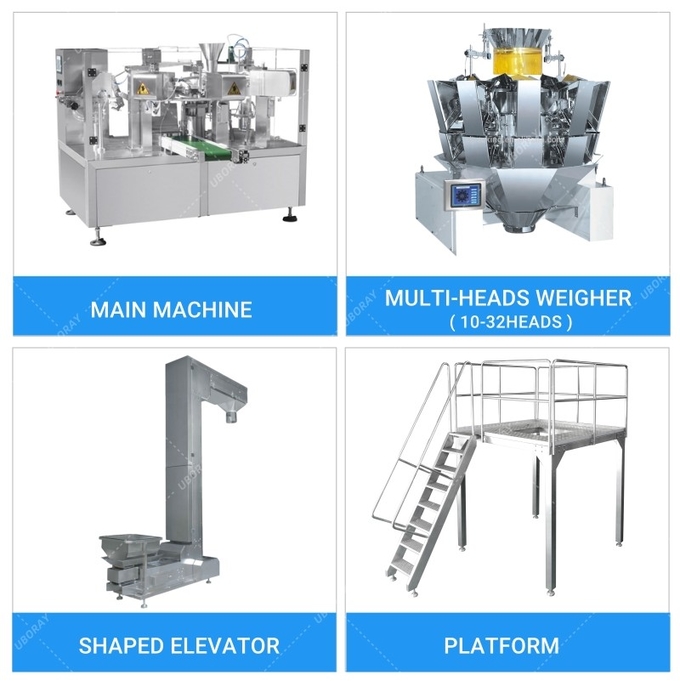

System units:


1. Z Shape bucket elevator / incline conveyor

Raise material to multihead weigher which controls the start and stop of the hoister


2. Multihead weigher

10/14/20 heads weighing machine for weighing target weight


3. Platform

Support the multihead weigher


4. Rotray packing machine

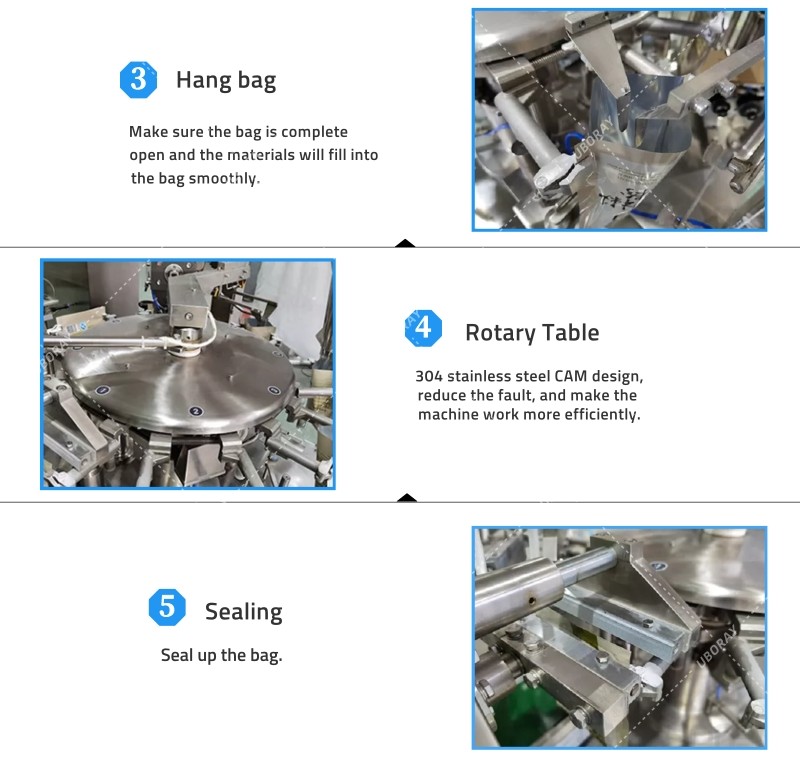

It is for packing pre-made pouch, including get bag, print date, open zipper bag, filling from multihead weigher, option position, hot sealing and cold sealing.

Automatic Zipper Doypack Packing Machine For Chocolate Bean

Automatic Zipper Doypack Packing Machine For Chocolate Bean

ZON PACK automatic doypack packing machine requirement for premade bag, stand-up bag with or without zipper. It is suitable for weighing grain, stick, slice, globose, irregular shape products such as candy, chocolate, jelly, pasta, melon seeds, roasted seeds, peanuts, pistachios, almonds, cashews, nuts, coffee bean, chips , raisins, plum, cereals and other leisure foods, pet food, puffed food, vegetable, dehydrated vegetables ,fruits, sea food, frozen food, small hardware, etc.
Model
ZH-GD8-200/250/300
Pouch Size
W: 70-330mm L:75-390mm
Filling range
10-3000g
Capacity
20-60bag/min(speed is determined by the product filling quantity)
Dosing Systems
Multi-head combination scale, Linear scale, Volumetric cup, Auger filler, Piston filler, etc.
Power
220V/380V/50/60 HZ(or customize according to specific demands)
Average precision
≤ ±1%
Cutting type
Straight cutting, Zig zag cutting, Round cutting, Special cutting
Powder
2.5KW-3.5kw
Machine Weight
1850KG
Dimensions (mm)
2200x1850x1700mm
Main standard parts

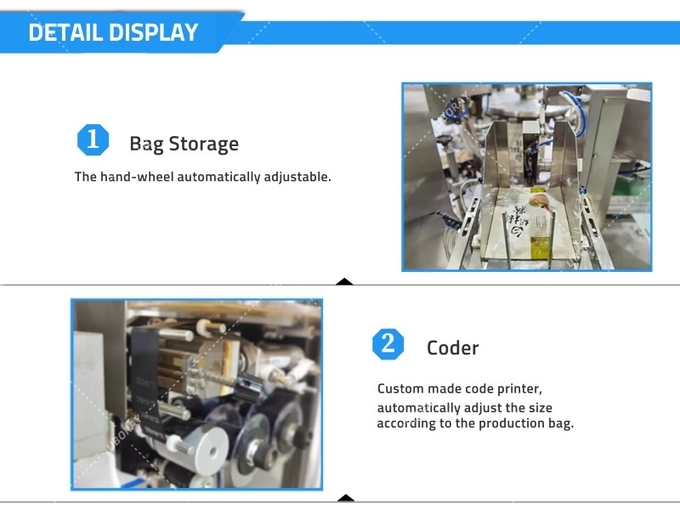

1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system

Automatic Zipper Doypack Packing Machine For Chocolate Bean

Automatic Zipper Doypack Packing Machine For Chocolate BeanAutomatic Zipper Doypack Packing Machine For Chocolate BeanAutomatic Zipper Doypack Packing Machine For Chocolate BeanAutomatic Zipper Doypack Packing Machine For Chocolate Bean
