Max film width 720mm 14 heads weigher waterproof surface VFFS sea food packing machine
Technical Feature
1. PLC control with stable, reliable biaxial high accuracy output and color touch screen, bagmaking, measuring,
filling, printing, cutting, be finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Imported PLC equipment, machine performance is stable and easy for parameters adjusting.
4. Easy to change different packing product and package sizes.
5. Separate PID temperature controller, suitable for various packing materials.
| Technical Specification |
| Model | ZH-BL10 sea food packing machine |
| Packing Speed | 30-70 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |
| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film ,PE film |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) | VFFS 320: (W) 60-150 (L)50-200
VFFS 420: (W) 60-200 (L)60-300
VFFS520: (W) 90-250 (L)80-350
VFFS 620: (W) 100-300 (L)100-400 VFFS720: (W) 120-350 (L)100-450
VFFS1050:(W) 200-500 (L)100-800 |
Application of Machine
It's suitable to use in packing the high accuracy and easy fragile material , such as : Potato Chips,Snacks,candy,puffed rice,pistachio,sugar,lentil,small hardware etc.
Optional Functions:
1. Date printer
2. Quad seal bag assembly
3. Bag-in-bag configuration
4. Flat bottom bag assembly
5. Hole punch (Euro slot or round)
6. Load shelf
7. Product settler
8. Gas flush
9. Static elimination
10. Tear notch
11. In-feed and take-away conveyors
12. Integration with variety of printers, metal detectors, label applicators, and checkweighers

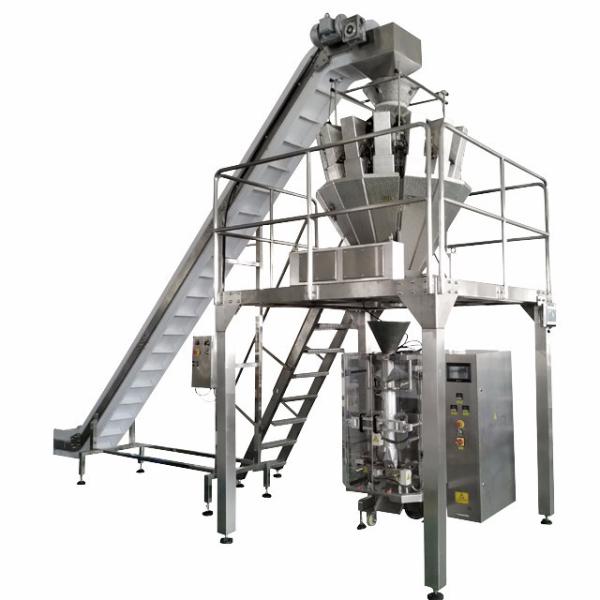

System Construction
1. Inclined conveyor:
Convey the product to multihead weigher
2. 10 heads/14 heads multihead weigher:
For product weighing.
3. Working platform:
Support the 10 heads multi weigher.
4. Vertical packing machine:
For bag forming and bag sealing.
5. Product conveyor:
Convey the finished bag to next step.
6. Rotary table:
For finished bag collecting.
The Bag type:
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are
dedicated to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
